SKU: OT6682 Číslo položky: XR791 EAN: 8720828223468

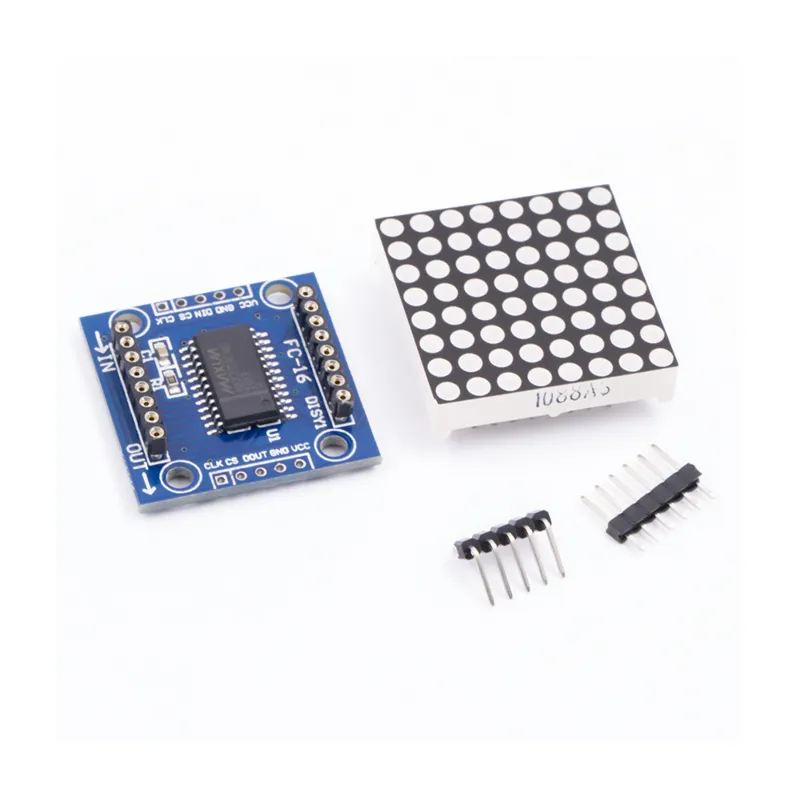

MAX7219 je IC používaný pro řízení LED panelů se společnou katodou, 7segmentových displejů a ukazatelů úrovně, které komunikují přes rozhraní SPI. Tato deska má LED displej s 8x8 bodovou maticí. Více modulů lze řetězit pomocí header konektorů.
Specifikace:

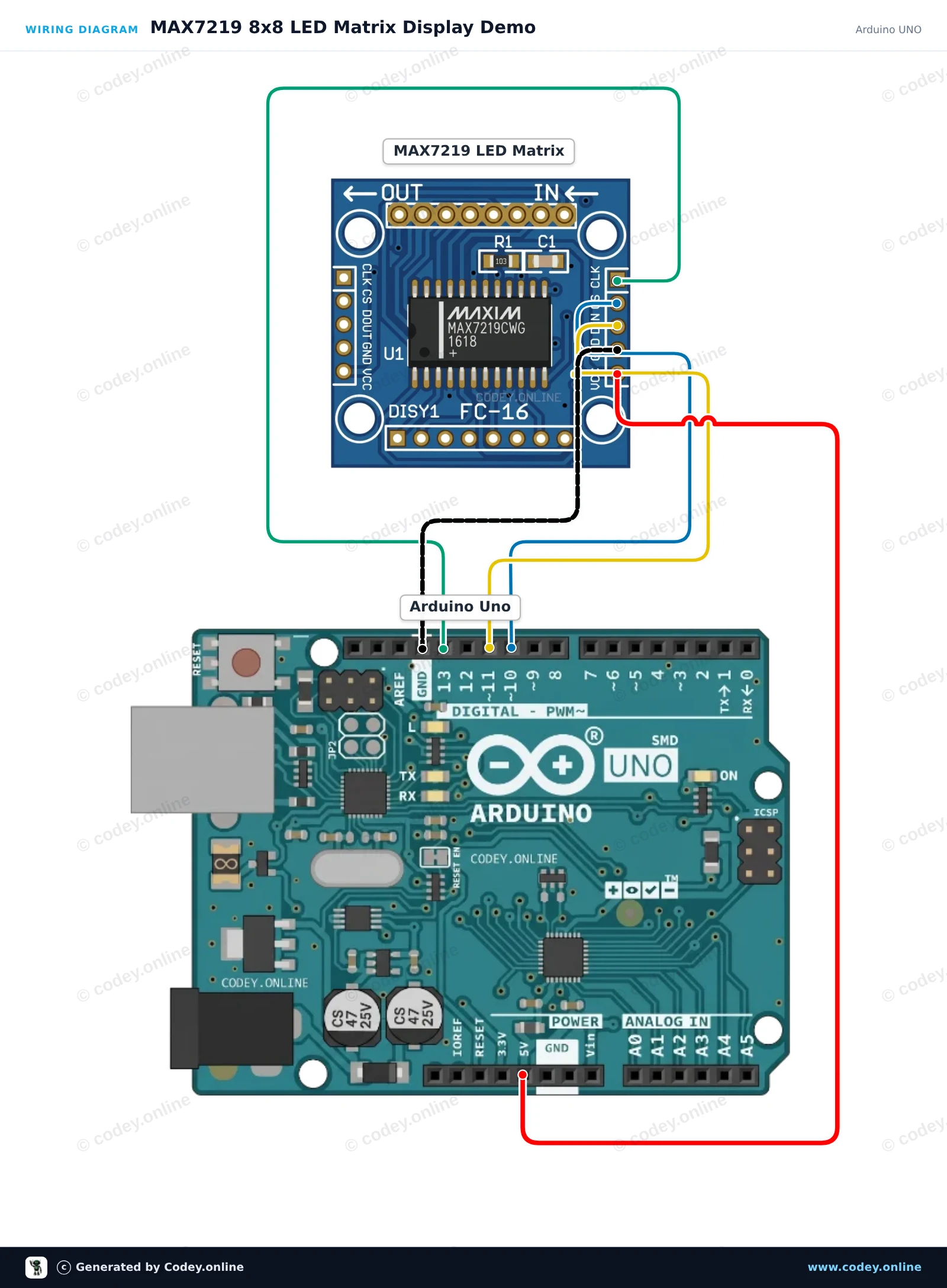

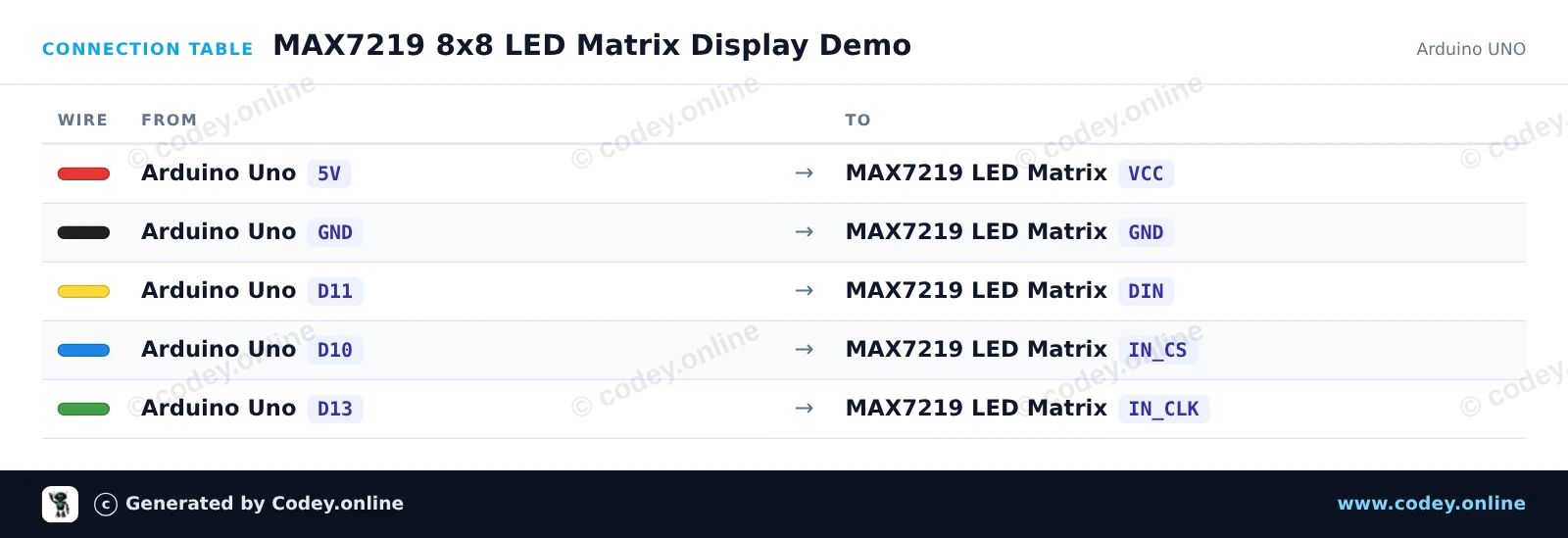

Takto připojíš LED Matrix Module MAX7219 Zelená k Arduino UNO nebo ESP32, s ukázkovým sketchem, který můžeš hned nahrát.
Tento projekt ukazuje, jak ovládat 8x8 MAX7219 LED matici s Arduino Uno. Sketch inicializuje displej a střídá zobrazení srdce, smajlíka a animace rozpínajícího se čtverce.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : MAX7219 8x8 LED Matrix Display Demo
* Board : Arduino UNO (arduino:avr:uno)
* Parts : LED Matrix Module MAX7219
* Libraries : LedControl 1.0.6
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <LedControl.h>
const int DIN_PIN = 11;
const int CS_PIN = 10;
const int CLK_PIN = 13;
LedControl lc = LedControl(DIN_PIN, CLK_PIN, CS_PIN, 1);
const byte HEART[8] = {
B00000000,
B01100110,
B11111111,
B11111111,
B11111111,
B01111110,
B00111100,
B00011000
};
const byte SMILE[8] = {
B00111100,
B01000010,
B10100101,
B10000001,
B10100101,
B10011001,
B01000010,
B00111100
};
void displayPattern(const byte pattern[8]) {
for (int row = 0; row < 8; row++) {
lc.setRow(0, row, pattern[row]);
}
}
void setup() {
Serial.begin(115200);
Serial.println(F("MAX7219 LED Matrix Demo"));
lc.shutdown(0, false); // Wake up display
lc.setIntensity(0, 8); // Set brightness (0-15)
lc.clearDisplay(0);
}
void loop() {
// Show Heart
displayPattern(HEART);
delay(1500);
// Show Smile
displayPattern(SMILE);
delay(1500);
// Dot scan animation
lc.clearDisplay(0);
for (int row = 0; row < 8; row++) {
for (int col = 0; col < 8; col++) {
lc.setLed(0, row, col, true);
delay(20);
}
}
delay(500);
lc.clearDisplay(0);
delay(300);
}
Potřebné knihovny: LedControl 1.0.6
Wiring diagram and example code generated by Codey.online — https://www.codey.online

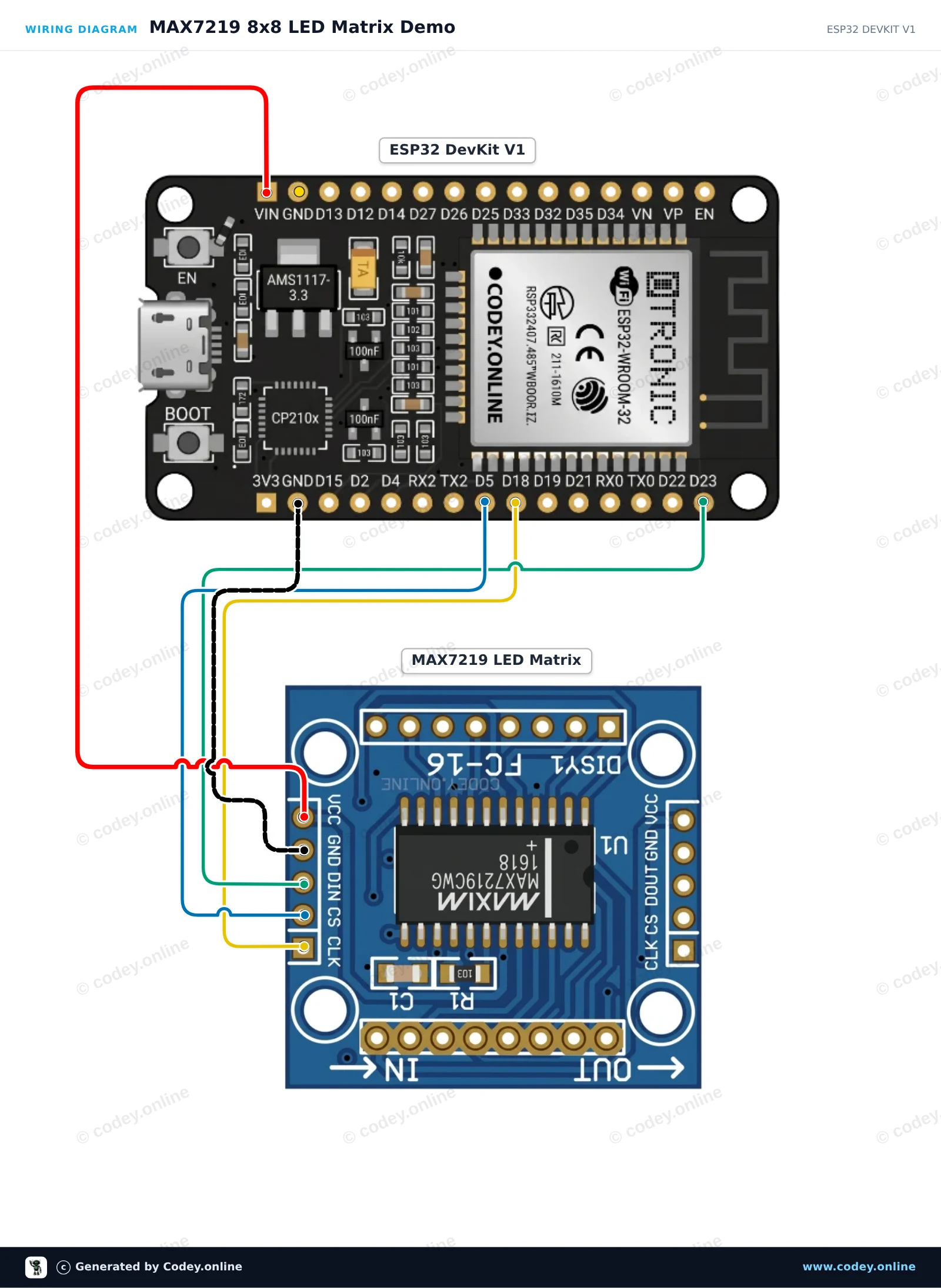

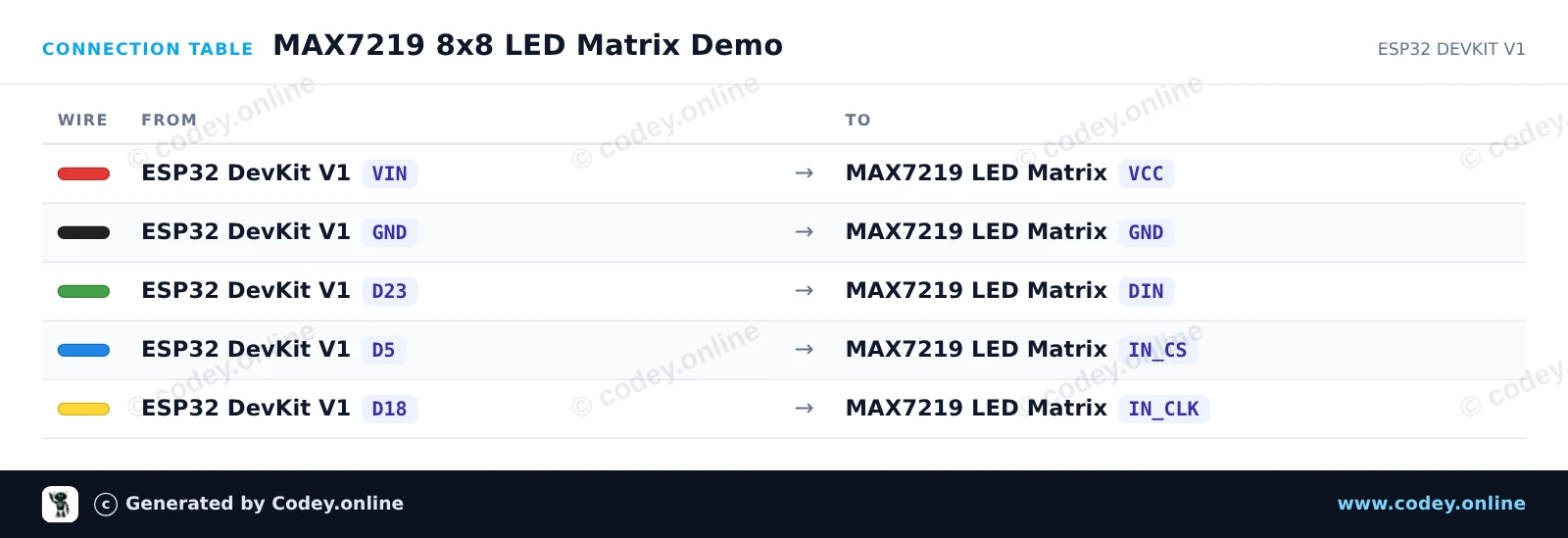

Tento projekt využívá hardwarové rozhraní SPI u ESP32 k řízení 8x8 LED matice MAX7219 bez potřeby externích knihoven. Sketch inicializuje displej a střídá zobrazení smajlíka, ikony srdce a animace skenování řádků.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : MAX7219 8x8 LED Matrix Demo
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : LED Matrix Module MAX7219
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <SPI.h>
const int CS_PIN = 5;
// MAX7219 register addresses
const byte REG_NOOP = 0x00;
const byte REG_DIGIT0 = 0x01;
const byte REG_DECODE = 0x09;
const byte REG_INTEN = 0x0A;
const byte REG_SCAN = 0x0B;
const byte REG_SHUT = 0x0C;
const byte REG_TEST = 0x0F;
// 8x8 Bitmaps
const byte SMILE[8] = {
0b00111100,
0b01000010,
0b10100101,
0b10000001,
0b10100101,
0b10011001,
0b01000010,
0b00111100
};
const byte HEART[8] = {
0b00000000,
0b01100110,
0b11111111,
0b11111111,
0b11111111,
0b01111110,
0b00111100,
0b00011000
};
void max7219Send(byte reg, byte data) {
digitalWrite(CS_PIN, LOW);
SPI.transfer(reg);
SPI.transfer(data);
digitalWrite(CS_PIN, HIGH);
}
void clearDisplay() {
for (byte i = 1; i <= 8; i++) {
max7219Send(i, 0x00);
}
}
void displayBitmap(const byte bitmap[8]) {
for (byte i = 0; i < 8; i++) {
max7219Send(i + 1, bitmap[i]);
}
}
void setup() {
Serial.begin(115200);
pinMode(CS_PIN, OUTPUT);
digitalWrite(CS_PIN, HIGH);
// Initialize hardware SPI (SCK=18, MISO=19, MOSI=23, SS=5)
SPI.begin(18, 19, 23, CS_PIN);
// Configure MAX7219 registers
max7219Send(REG_TEST, 0x00); // Normal operation (display test off)
max7219Send(REG_SCAN, 0x07); // Scan all 8 digits/rows
max7219Send(REG_DECODE, 0x00); // Raw matrix mode (no BCD decoding)
max7219Send(REG_INTEN, 0x04); // Medium brightness (0x00 to 0x0F)
max7219Send(REG_SHUT, 0x01); // Normal operation (wake up)
clearDisplay();
Serial.println("MAX7219 LED Matrix ready!");
}
void loop() {
// Show Smiley Face
displayBitmap(SMILE);
delay(2000);
// Show Heart Icon
displayBitmap(HEART);
delay(2000);
// Row scan animation
clearDisplay();
for (byte r = 1; r <= 8; r++) {
max7219Send(r, 0xFF);
delay(100);
max7219Send(r, 0x00);
}
}
Wiring diagram and example code generated by Codey.online — https://www.codey.online
